The Anti-Sagging Effect of Fumed Silica in Epoxy Zinc-Rich Paint
Epoxy zinc-rich paint is widely applied in heavy-duty anti-corrosion protection systems due to its cathodic protection capability and strong adhesion to steel substrates. It is commonly used for steel structures exposed to demanding environments, including bridge components, offshore platforms, pipelines, and industrial equipment.
During coating application, especially on vertical surfaces or complex geometries, sagging remains a major challenge. Before curing, the wet coating film may flow downward under gravity when its internal yield stress is insufficient to maintain film stability. This can lead to uneven coating thickness, sag marks, and localized defects, affecting both appearance and long-term protective performance. Improving sag resistance while maintaining good leveling behavior requires precise adjustment of coating rheology.
Hydrophobic fumed silica is widely used as a rheology modifier to address this requirement. HIFULL® hydrophobic fumed silica developed by Hubei Huifu Nanomaterial Co., Ltd. provides improved structural control for high-performance coating formulations.
Characteristics of Hydrophobic Fumed Silica
Fumed silica is a nano-scale amorphous silica produced through flame hydrolysis of silicon halides in a hydrogen-oxygen flame. It typically exhibits a purity above 99.8%, a primary particle size of 7–40 nm, and a specific surface area ranging from 30–450 m²/g. The particle surface contains abundant silanol groups (Si–OH), which provide strong surface activity and enable interaction with surrounding resin components.
Hydrophobic fumed silica is obtained through surface modification of hydrophilic fumed silica. During this process, surface silanol groups are partially replaced by hydrophobic groups using modifiers such as dimethyldichlorosilane. The modification reduces surface polarity, improves compatibility with organic resin systems, and enhances dispersion stability while maintaining the high specific surface area of fumed silica.
Hubei Huifu Nanomaterial Co., Ltd. is a national-level “Little Giant” enterprise specializing in fumed nanomaterials. With more than 20 years of experience in this field, the company has participated in the development of three international standards and owns 52 core patents. The HIFULL® hydrophobic fumed silica product range includes HB-139, HB-151, HB-612, HB-615, and HB-620, providing different surface properties and rheological effects for various coating applications.
Grade | Specific Surface Area (m²/g) | pH value in 4% dispersion | Loss on drying (%) | Loss on ignition(%) | Silica Content(%) | Carbon Content(%) | Tamped Density (g/L) |
|---|---|---|---|---|---|---|---|
140±20 | 5.0~8.0 | ≤0.7 | ≤2.0 | ≥99.8 | 0.7~1.3 | 40~60 | |
140±20 | 5.0~8.0 | ≤0.7 | ≤4.0 | ≥99.8 | 1.0~1.7 | 40~60 | |
170±30 | 6.0~9.0 | ≤0.7 | ≤4.0 | ≥99.8 | 1.5~2.5 | 40~60 | |
110±30 | 4.0~7.0 | ≤0.7 | ≤10.0 | ≥99.8 | 4.0~7.0 | 45~70 | |
130±30 | ≥3.9 | ≤0.7 | ≤2.5 | ≥99.8 | 0.6~1.2 | 40~60 |
Evaluation of Anti-Sagging Performance in Epoxy Zinc-Rich Paint
The influence of hydrophobic fumed silica on the sagging resistance of epoxy zinc-rich paint was evaluated using a comparative formulation study. The blank formulation contained no rheological additive, while the test formulation incorporated 1.8% HIFULL® hydrophobic fumed silica under identical coating conditions.
A sagging tester was used to prepare coating films with different thicknesses on standard tinplate panels. The tested film thicknesses included:
50 μm, 75 μm, 100 μm, 125 μm, 150 μm, 175 μm, 200 μm, 225 μm, 250 μm, and 275 μm.
This thickness range covers the typical variation of single-layer coating application thickness and allows direct comparison of the sagging limit between formulations.

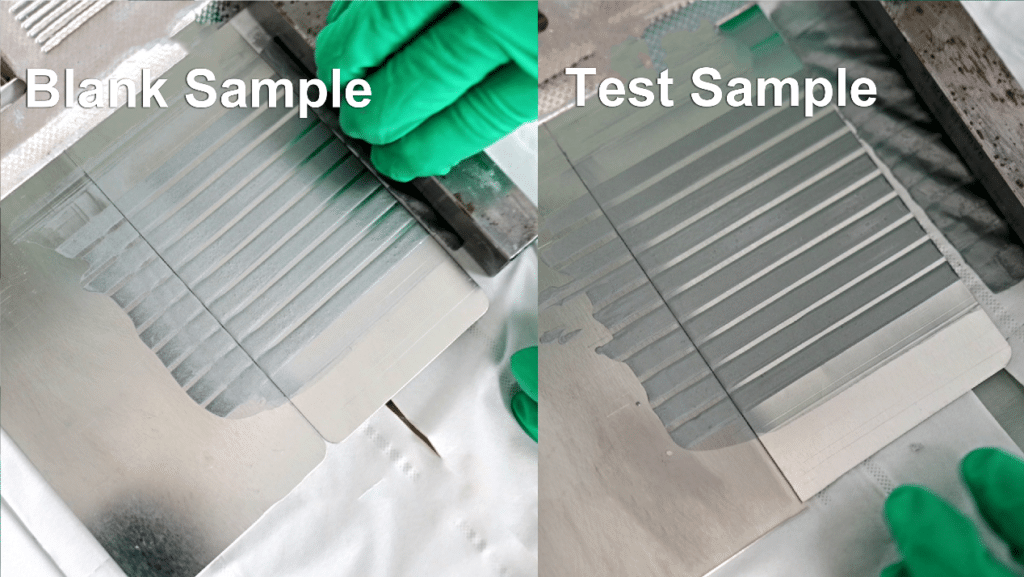

Figure 1
When the coated panels were placed horizontally, no obvious difference was observed between the blank sample and the formulation containing 1.8% HIFULL® hydrophobic fumed silica. Both samples exhibited smooth surfaces and comparable leveling behavior, indicating that the additive did not negatively affect coating flow during application.
The difference became apparent when the panels were placed vertically under identical conditions, allowing gravity to act on the uncured coating films.
Figure 2
For the blank sample, increasing film thickness resulted in progressively reduced sag resistance. When the coating thickness reached 100 μm or more, the gravitational force exceeded the coating system’s yield stress, causing downward flow, uneven accumulation at the lower edge, and visible sagging defects. At thicknesses above 175 μm, severe sagging occurred, leading to significant deformation of the coating film.
In contrast, the formulation containing 1.8% HIFULL® hydrophobic fumed silica maintained uniform edges and a smooth surface throughout the entire tested thickness range from 50 μm to 275 μm. No visible sagging was observed even at 275 μm, which exceeds conventional single-coat application thicknesses. The result confirms that HIFULL® hydrophobic fumed silica effectively improves the anti-sagging performance of epoxy zinc-rich paint under high-build coating conditions.
Rheological Mechanism of Sag Control
The anti-sagging effect of fumed silica originates from the formation of a reversible three-dimensional network within the liquid coating system.
The surface silanol groups of fumed silica interact with polar groups in epoxy resin molecules through hydrogen bonding. Meanwhile, silica particles form interconnected structures through particle–particle interactions, creating a weak physical network throughout the coating matrix.
Under low-shear conditions, such as storage or after application, this network increases viscosity and provides sufficient yield stress to maintain film stability. During high-shear processes, including brushing, rolling, or spraying, the network structure temporarily breaks down, reducing viscosity and improving application performance. After shear removal, the structure rapidly rebuilds, allowing the coating to recover its resistance to gravitational flow.
This reversible rheological behavior enables epoxy zinc-rich paint to achieve a balance between application properties and sag resistance.
Application Benefits in Heavy-Duty Protective Coatings
The incorporation of HIFULL® hydrophobic fumed silica provides epoxy zinc-rich coatings with improved film stability during application while maintaining leveling performance. The enhanced rheological control is particularly suitable for high-build coatings applied on vertical surfaces, complex structures, and large-scale steel components.
Through nanoscale surface modification and network formation, hydrophobic fumed silica improves the processing reliability of protective coating systems used in applications such as offshore structures, pipelines, industrial facilities, and heavy-duty steel protection.
