Influence of Hydrophobic Fumed Silica on White Spots in Powder Coatings
In the production and application of powder coatings, white spot defects have been a major issue for industry technical personnel. “White spots” usually refer to tiny white spots or granular defects on the coating surface, which impair aesthetics and can reduce protective performance and adhesion.
The causes of white spots are complex, involving multiple factors such as raw material purity, the dispersion process, curing conditions, and environmental humidity. Regarding functional additives like fumed silica, their high specific surface area and strong adsorption properties can easily lead to white spots if dispersion is insufficient or handling is improper.
Therefore, scientifically selecting and properly adding hydrophobic fumed silica is a key factor in improving the quality of powder coatings. HIFULL technical team conducted a series of systematic experiments regarding whether hydrophobic fumed silica causes white spot issues in powder coatings, aiming to provide customers with targeted product solutions.
The technical team selected four groups of powder coating samples: one group served as the blank control, while the other three groups were formulated with 0.4% of three different grades of hydrophobic fumed silica—HB-151, HB-612, and HB-615. All samples were fully mixed in the same high-speed mixing equipment using uniform dispersion process parameters to eliminate the interference of process variables on the experimental results.

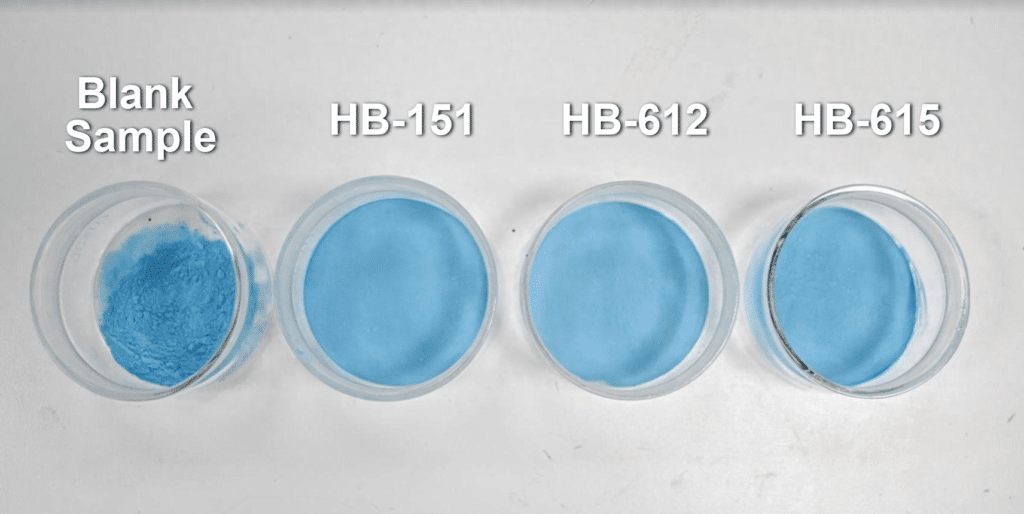

Figure 1
After mixing, as shown in Figure 1, the technical personnel took equal amounts of the four sample groups and placed them in identical observation dishes. They spread the samples evenly through standard oscillation, and then carefully observed the surface state under a high-power magnifying glass and a standard light source, specifically recording the quantity and distribution of white spots.
Among them, the blank sample showed clear caking and agglomeration, whereas the experimental samples containing HB-151, HB-612, or HB-615 did not exhibit any recognizable white spots. This result indicates that under reasonable dispersion process conditions, using hydrophobic fumed silica prepared with different modification processes has no significant impact on the generation of white spots in powder coatings.
An analysis reveals that the formation of white spots often stems from the uneven dispersion of fillers or additives in the resin matrix, leading to local agglomeration. These agglomerates cannot be fully wetted during the melt leveling stage, thereby leaving unfused particles on the coating surface.
However, HIFULL® hydrophobic fumed silica products, relying on their highly controllable surface chemical structure and excellent dispersion stability, effectively avoid such problems. The hydrophobic modification of this series reduces the material’s sensitivity to moisture and enhances its compatibility with organic resin systems, making it easier to distribute evenly during powder coating processing, thus ensuring the compactness and smoothness of the coating.
HB-151, HB-612, and HB-615
These three products were independently developed by HIFULL. Although all belong to the hydrophobic fumed silica category, they exhibit subtle differences in surface modifier types, specific surface area, particle size distribution, and hydrophobicity, representing Huifu Nanomaterial’s diversified product layout for different application scenarios.
With scientific formula design and standardized production processes, the effects of different grades of hydrophobic fumed silica on white spots in powder coatings are consistent, and they do not cause product defects. This provides a further reference for coating enterprises when selecting functional additives and confirms Hubei Huifu Nanomaterial Co., Ltd.’s technical strength and reliable product quality in the field of nanomaterials.
