The Influence of Fumed Silica on the Mechanical Properties of Epoxy Resin Adhesives

Epoxy resin adhesives possess excellent bonding strength, good heat resistance, chemical stability, and electrical insulation properties. They are applicable in aerospace, electronic packaging, and automotive manufacturing.

However, pure epoxy resins often suffer from high brittleness, insufficient toughness, and poor impact resistance in practical applications, limiting their use in complex environments. Functional fillers are needed to improve their overall mechanical properties.

Fumed silica, as a nanoscale inorganic filler, exhibits high specific surface area, excellent dispersibility, and unique surface activity, demonstrating great potential in enhancing the mechanical properties of epoxy resin matrices.

HIFULL Technicians conducted a systematic study on the influence of different fumed silica contents on the average tear strength (Rm) and average tensile strength (Ts) using the HB-139 epoxy adhesive system.

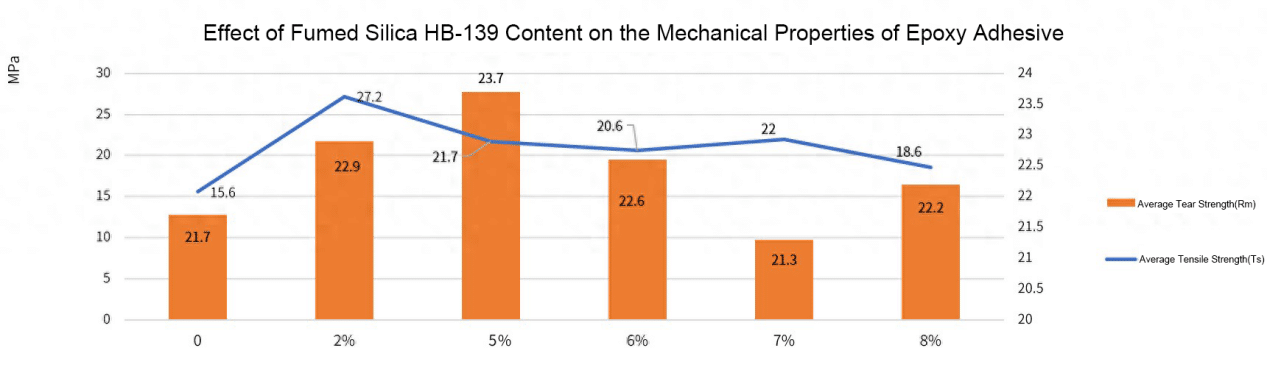

The experimental results are shown in Figure 1. By analyzing the mechanical test data of samples under six fumed silica addition levels—0%, 2%, 5%, 6%, 7%, and 8%—the quantitative relationship between filler content and adhesive performance was revealed, aiming to provide theoretical basis and technical support for the formulation optimization of high-performance epoxy adhesives.

HIFULL® HB-139 (BET=180㎡/g)

Figure 1

As can be seen from Figure 1, with increasing fumed silica addition, the two key mechanical properties of the epoxy adhesive—average tear strength (Rm) and average tensile strength (Ts)-show a non-linear trend, and their change patterns differ significantly.

(I) Trend of Average Tear Strength (Rm)

Average tear strength reflects the material’s ability to resist damage caused by local stress concentration and is an important indicator for measuring the toughness and crack propagation resistance of the adhesive. The data shows:

When the fumed silica addition is 0%, Rm is 21.7 MPa;
After adding 2%, Rm increases to 22.9 MPa, an increase of about 5.5%;
Continuing to increase to 5%, Rm reaches a peak of 23.7 MPa, an improvement of 7.4% compared to the blank sample.
Subsequently, as the content increases, Rm shows a downward trend: 22.6 MPa at 6%, a sharp drop to 21.3 MPa at 7%, and a slight rebound to 22.2 MPa at 8%.

This trend indicates that an appropriate amount of fumed silica can effectively enhance the tear resistance of the epoxy matrix, but excessive addition will instead weaken this property.

The reason is that at low addition levels, nano-SiO₂ particles are uniformly dispersed in the epoxy resin, forming a three-dimensional network structure. Meanwhile, surface hydroxyl groups can form partial chemical bonds with epoxy groups, improving interface bonding strength, thereby enhancing toughness. However, when the addition exceeds a critical value (approximately 5%), particle agglomeration intensifies, ultimately reducing the overall tear strength.

(II) Trend of Average Tensile Strength (Ts)

Average tensile strength reflects the material’s load-bearing capacity under axial loads and is directly related to the overall stiffness and deformation resistance of the adhesive layer. The data manifests as:

Without filler, Ts is 15.6 MPa;
After adding 2% fumed silica, Ts jumps to 27.2 MPa, an increase as high as 74.4%;
At 5%, it remains at a relatively high level (23.7 MPa), which although showing a slight decline, is still far higher than the original value;

It then gradually decreases, dropping to 18.6 MPa at 8%, only slightly higher than the initial value.

It is evident that tensile strength is more sensitive to changes in fumed silica content, and there is a clear inflection point of “first increasing, then decreasing.” This suggests that a small amount of filler can significantly enhance the rigidity and load-bearing capacity of the epoxy resin.

Adhesives & Sealants

Adhesives & Sealants In sealants and adhesives, fumed silica plays a major role in rheological control and viscosity strength. When fumed silica is added and dispersed in adhesives and sealants,…

However, when the filler addition amount is too high, due to uneven dispersion and severe agglomeration, not only is the effective reinforcement effect reduced, but micro-pores or voids may also be introduced, causing uneven internal stress distribution, ultimately leading to a decline in tensile strength.

The addition of fumed silica changes the three-phase structure of the epoxy system: continuous phase (epoxy resin), dispersed phase (SiO₂ particles), and interface phase (filler-resin interface). Ideally, “uniform dispersion + strong interface bonding + moderate filling” should be achieved to obtain the best comprehensive performance.

The results of this experiment show that 5% is the optimal addition amount. It ensures high tear strength while maintaining a relatively ideal tensile strength, serving as the key window to achieve a “strength-toughness balance.”
