Comparison of Fumed Silica and Bentonite in Polyurethane Adhesives
In modern industrial adhesives, particularly high-performance polyurethane adhesives, the selection of fillers is vital to the final product’s performance. Among them, fumed silica and bentonite, as two common thickening and reinforcing fillers, exhibit significant differences in practical applications due to their unique physical and chemical characteristics.
Fumed silica is a nano-scale amorphous silica produced by the high-temperature hydrolysis of silicon tetrachloride in a hydrogen-oxygen flame. It has an extremely small particle size (typically 7-40nm), a large specific surface area, and a surface rich in silanol groups, which together confer strong adsorption capacity and reactivity.
In adhesives, fumed silica forms a three-dimensional network structure through hydrogen bonding, endowing the system with excellent thixotropy and thickening effects, without affecting its transparency and curing performance.
Bentonite is a natural layered silicate mineral, with montmorillonite as its main component. Its interlayers can adsorb water molecules or organic molecules to swell. After modification, it can be used as a thickening and thixotropic agent in adhesives. Bentonite forms a “card-house structure” through the interaction between interlayer charges and polar molecules, thereby endowing the system with certain viscosity and thixotropy. However, its dispersibility and stability are generally inferior to those of fumed silica.
Thixotropy refers to the property of a material where its viscosity decreases under shear and recovers after resting, which is crucial for vertical surface application and preventing sagging. The data in the figure shows the thixotropic performance and viscosity of the two components of polyurethane adhesive.
Figure 1
As shown in Figure 1, the viscosity of fumed silica HB-139 at 12rpm is as high as approximately 14,600cp, with a thixotropic value of about 3.2, demonstrating extremely strong thickening ability and excellent thixotropy.
The viscosity of bentonite is only about 6,200cp, with a thixotropic value of about 1.6, both of which are significantly lower than those of fumed silica.
Due to its nano-scale particle size and surface activity, fumed silica can rapidly construct a stable three-dimensional network within the system, thereby achieving high viscosity and a high thixotropic index. Although bentonite can also increase viscosity, its layered structure is easily destroyed under shear, and its recovery is poor, resulting in limited thixotropic effects.
Therefore, in occasions with high requirements for application performance and sag resistance, fumed silica has a greater advantage.
Elongation at break is a key mechanical indicator for measuring the flexibility and deformation resistance of polyurethane adhesives.

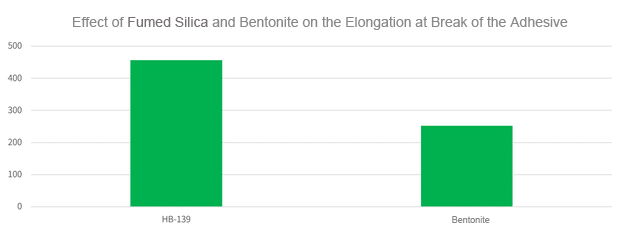

Figure 2
As shown in Figure 2, the adhesive using fumed silica HB-139 has an elongation at break close to 450%, showing extremely high toughness. In contrast, the sample using bentonite has an elongation at break of only about 250%, which is far lower than the former.
Fumed silica disperses evenly in the system and forms physical cross-linking points with the polyurethane molecular chains, not only enhancing the system’s strength but also maintaining the mobility of the molecular chains, thereby increasing the elongation at break. Due to its rigid lamellar structure and poor compatibility with the matrix, bentonite tends to form stress concentration points, leading to the embrittlement of the adhesive layer and a significant decrease in elongation at break.
From the above comparison, it is evident that fumed silica is comprehensively superior to bentonite in terms of thixotropy, thickening effect, and mechanical reinforcement, making it especially suitable for high-end polyurethane adhesives that require high transparency, high toughness, and vertical application. While bentonite has a lower cost, it still holds certain application value in some mid-to-low-end occasions where performance requirements are not high.
In the formulation design of polyurethane adhesives, the selection of thixotropic agents and reinforcing fillers directly affects the final product’s application experience and performance. Leveraging its nano-effects and surface characteristics, fumed silica demonstrates significant advantages in enhancing thixotropic behavior and mechanical properties, making it particularly suitable for the modern industry’s demands for high-performance and high-reliability adhesives. Although bentonite is less costly, it proves inadequate in high-demand scenarios.
